Datacard SP55k Kiosk Card Printer

Datacard SP55k Kiosk Card Printer

Datacard SP55k Kiosk Card Printer
Call for price +30 210 6180865

Availability: Out of stock

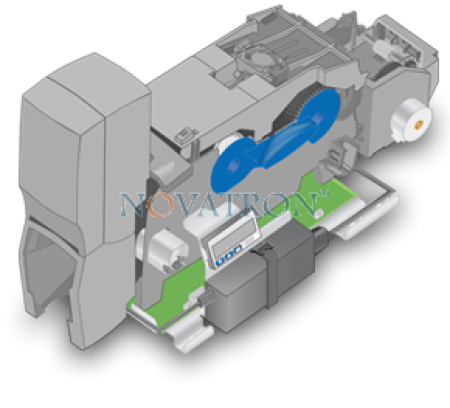

Developed exclusively for integration into kiosks, the Datacard® SP55k kiosk card printer delivers an attractive combination of proven reliability, high-quality card printing and the ability to integrate smoothly with a variety of kiosk designs. To help kiosk integrators even more, it has low maintenance requirements and is very easy to use.

  • Choose from three flexible configurations.
  • Adapt card printing for multiple kiosk designs.
  • Launch new kiosk concepts more quickly.



Printing Module - Resolution: One or two-sided edge-to-edge printing - 300dpi
Print Method: Direct-to-card dye-sublimation/resin thermal transfer
Speed: up to 212 cards/hour (see more on pdf datasheet)
Interface: USB, 10/100 Ethernet optional
Input Capacity: 100 cards
Output Capacity: 40 cards
Physical Dimensions - Weight: see on pdf datasheet - 4.5 kg
Warranty: 24-month Years



Vivid, versatile cards
Print full-color or one-color cards and choose from one- or two-sided printing. All choices deliver brilliant results with dye sublimation quality and edge-to-edge coverage.

Versatile configurations
Flexible parameters and a coverless design easily adapt to multiple kiosks. Integrators can also choose from three configurations for simplex, duplex or duplex ATM-style card issuance. Use the integrator’s kit to look at detailed specifications and determine which configuration best suits your design.

Secure mounting base
The metal mounting base allows for secure attachment inside the kiosk structure.

Configurable card output locations and drop angle
Integrators can customize the output location of printed cards to match the specific application and kiosk design. The card drop angle can be easily customized by adjusting settings on the printer’s LCD panel.

Hot swappable printer feature
To keep kiosks up and running and minimize downtime, the SP55k printer can be swapped into a kiosk without reinstalling the driver.

Card reject tray
A separate area for rejected cards helps increase security and maintain quality control. (Available with one-sided printing only.)



ISO magnetic stripe encoding (factory install or field upgrade)

Smart card personalization (factory install or field upgrade)
A wide variety of smart card options provides flexibility for many applications.

The printer supports Ethernet 10/100 Base-T bi-directional networking for the Windows 2000, Server 2003 and XP operating systems.

Backlit LCD panel
Improve efficiency with a built-in LCD panel that shows printer status at-a-glance and makes it easy to adjust printer settings.

Locking input hopper
Protect cards from theft with a locking input hopper.

Input hopper empty detection
The SP55k Plus printer can detect when the input hopper is empty. Add this custom feature to your printer with the software developer’s kit (SDK).

ATM-style card output bezel
This bezel holds a card for convenient pick-up, then retracts the card if it is not retrieved after a designated time period.

Remote Installation of Plastic Card Printer

Απομ. Εγκατ. 1


Install your new printer easily, quickly and safely with Novatron Remote Plastic Card Printer Installation Service.

The installation is done online, through the AnyDesk application, a specific appointment is set with a specialized technician, without requiring a visit of our technician to your place.

For more information about the Service, select it in the "Related Products".


Additional Information

Additional Information

PRINT METHOD Dye Sublimation, Thermal Transfer
Color Speed 150
Mono Speed 500
Input Hopper Capacity 200
Output Hopper 45
Memory 128Mb
WARRANTY 2 years
