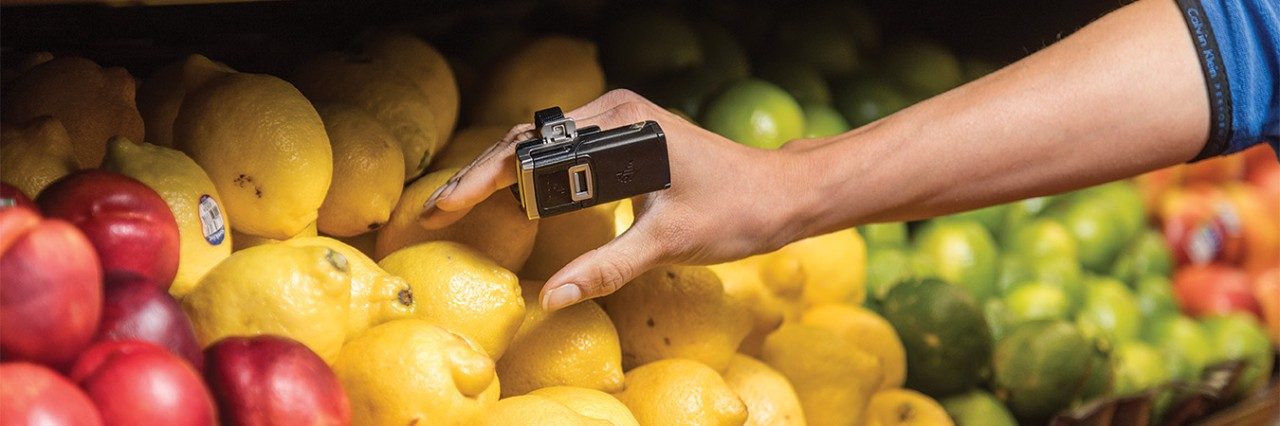

Zebra RS5100: The next generation in wireless ring scanner design, performance and versatility.
Ring scanners can provide your workforce with the hands-free scanning they need to maximize productivity. But today’s workers have high expectations for wearable devices. They expect a modern design with a minimal footprint for maximum comfort, ease-of-use that’s so intuitive that virtually no training is required, plus point-and-shoot scanning simplicity on every barcode. Your business requires a flexible design that’s just as at home in customer-facing areas as the warehouse, a rugged design to ensure a long lifecycle with a low Total Cost of Ownership (TCO), scanning options that match the needs of your environment, plus backroom accessories that reduce management time and cost.
Now, you can have it all with the RS5100. A comfortable, featherlight-yet-rugged industrial design at home anywhere in your facility. Zebra’s advanced scan engines for unmatched scanning performance. And features that drive ease-of-use and manageability to a new level.
Performance Characteristics:
Optical Resolution: 1280 x 960 pixels
Aiming Element: SE4710: 610 nm LED
Illumination Element: SE4710: 1 Hyper Red 660 nm LED, SE4770: 1 Hyper Red 660 nm LED or 1 Warm-White LED
Supported 1D Symbologies: Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma)
Supported 2D Symbologies: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
Supported OCR Symbologies: OCR-A, OCR-B
User Interface:
LED: 4 RGB LEDs located at the back side of the device (programmable)
Scan Triggering: Manual ambidextrous trigger
Data Capture: SE4710 or SE4770 1D/2D standard range imaging engines
* Twice the scanning range of the RS507X
Additional Information
MANUFACTURER | ZEBRA |
---|---|
MANUFACTURER PART # | RS51B0-LBSNWR |
TECHNOLOGY | 2D IMAGER |
DROP SPECIFICATIONS | 1.8m σε τσιμέντο |
INTERFACE | CORDLESS BLUETOOTH |
AUTO SENSE | Yes |
WARRANTY | 1 Year |
Battery Warranty | 3 months |
